International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments

Product Categories
Chengdu Jiebo Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

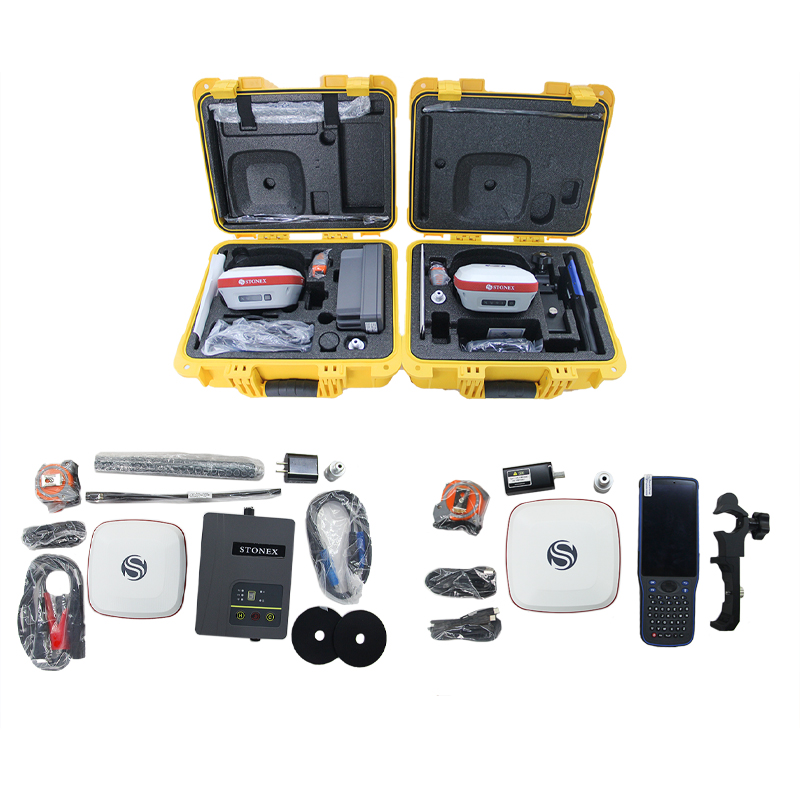

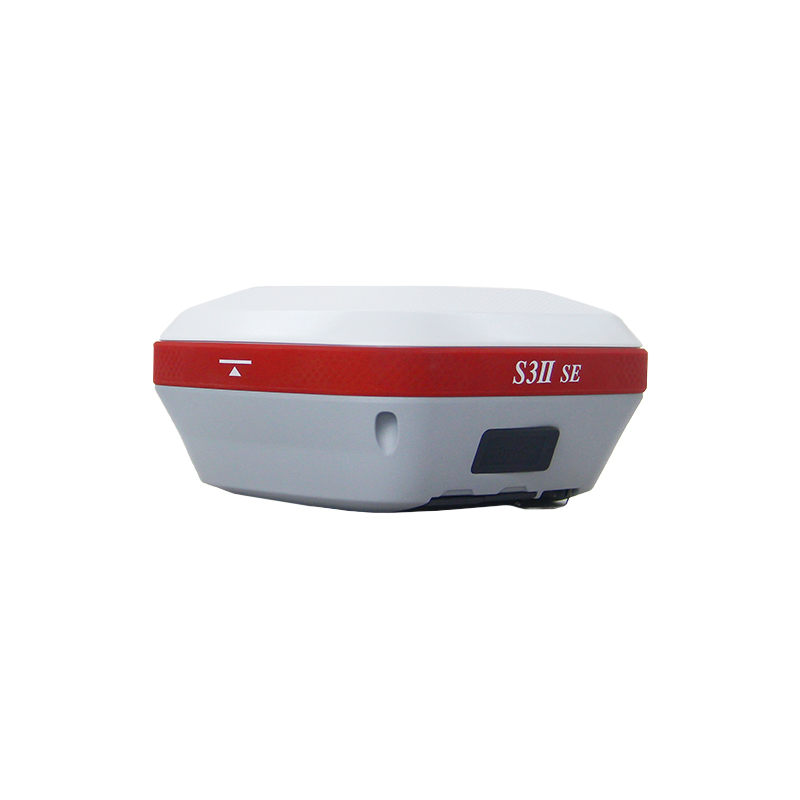

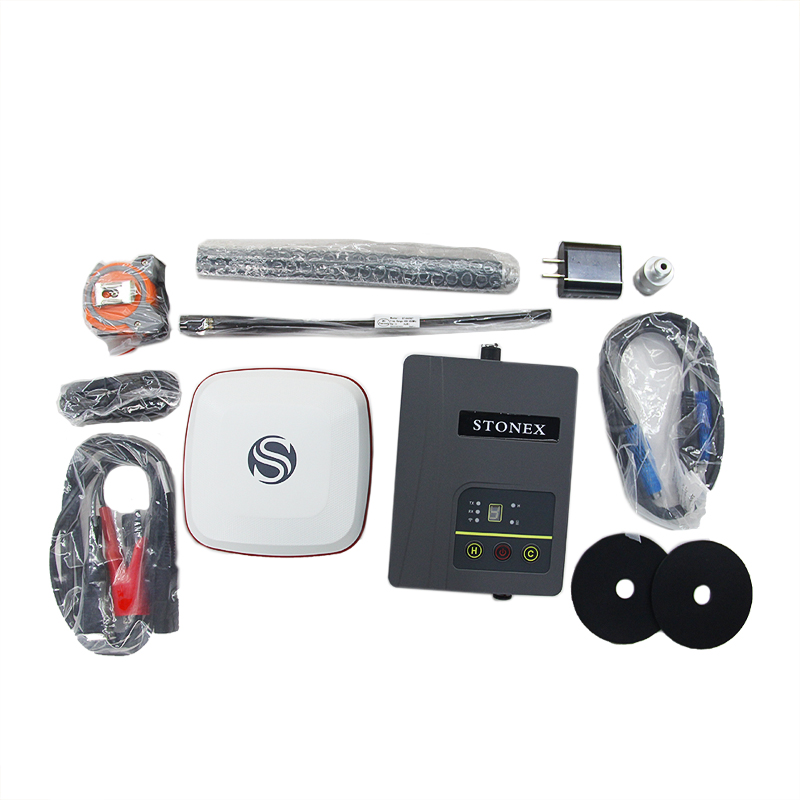

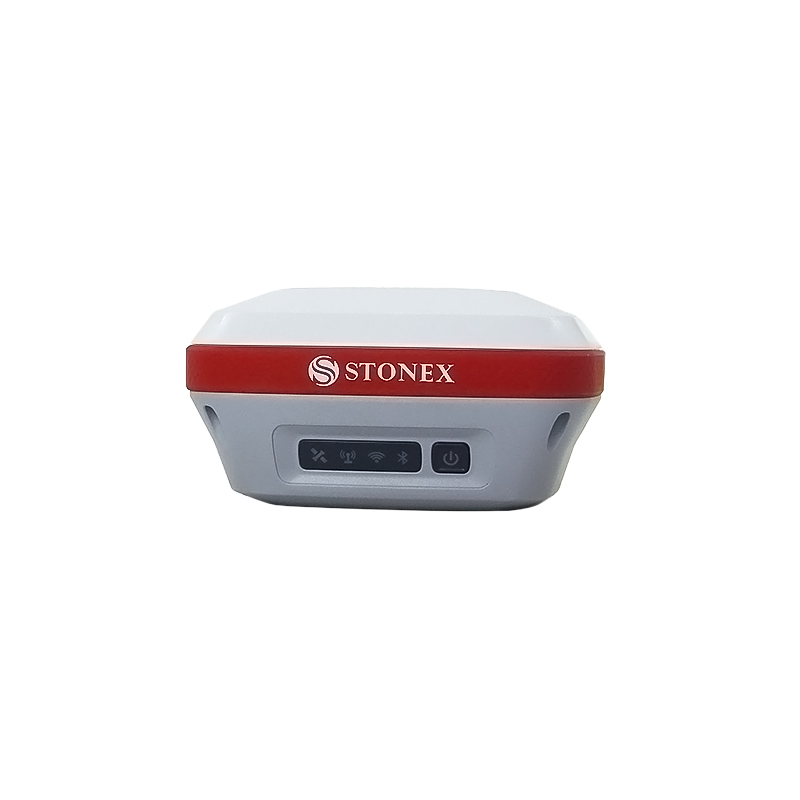

International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments

Brand Name : STONEX

Model Number : S3II SE

Place of Origin : China

MOQ : 1 piece

Price : $3,600.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver STONEX S3II SE

Customized support : OEM

Channel : 800 Channels

Battery : Built-in smart lithium battery, 6800mAh, 7.2V

weight : 1100g

size : 140mm×140mm×71mm

Built-in storage : Onboard 8G

external radio : 5W/35W adjustable

Contact Now

International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments

project subproject describe
GNSS number of channels 800
performance tracking feature BDS-2: B1, B2, B3
BDS-3: B1C, B2a, B2b, ACEBOC
GPS: L1C/A, L1C, L1P, L2C, L2P, L5
GLONASS: G1,G2,G3
Galileo: E1, E5a, E5b, AltBOC, E6
QZSS:L1C/A,L1C, L2C, L5, LEX
data output NMEA0183, NMEA2000, Crescent binary
Differential output RTCM SC-104(SBAS/Beacon) has its own differential format ROX,
RTCM2.x, RTCM3.x, CMR, CMR+
Accuracy Index Static measurement Level: ±(2.5+0.5×10-6D) mm
Vertical: ±(5+0.5×10-6D) mm
RTK measurement Level: ±(8+1×10-6D) mm
Vertical: ±(15+1×10-6D) mm
Inertial navigation measurement (need to be activated separately) Compensation accuracy 8mm+0.3mm/°tilt (<2cm within 30°)
Compensation position 0~70°
Inertial navigation update rate 200Hz
System platform operating system Linux
Built-in storage Onboard 8G
V2.1+EDR / V4.0 Dual Mode, Class2
Wi-Fi 802.11 b/g/n
Global Radio Protocol TrimTalk, TrimMaskⅢ, PCCEOT
Geotalk, Hitarget
frequency 410-470MHz
number of channels 7+2400 (7 fixed channels, 2400 customizable channels)
external radio 5W/35W adjustable
Electrical properties Battery Built-in smart lithium battery, 6800mAh, 7.2V
Input voltage 9~28V DC
Human-computer interaction button The power button is used to turn the host on and off.
Short press once to broadcast the current working mode and status.
Data interface TNC interface Connecting the built-in radio antenna
5-pin interface Used to connect external power supply and external radio.
Type-C For direct charging, data transfer.
physical index size 140mm×140mm×71mm
weight 1100g
Environmental performance Operating temperature -30℃~+70℃
storage temperature -40℃~+80℃
Waterproof and dustproof IP68
Anti-drop 2 meters drop with the pole (concrete hard ground)
humidity Resist 99% condensation
project subproject describe

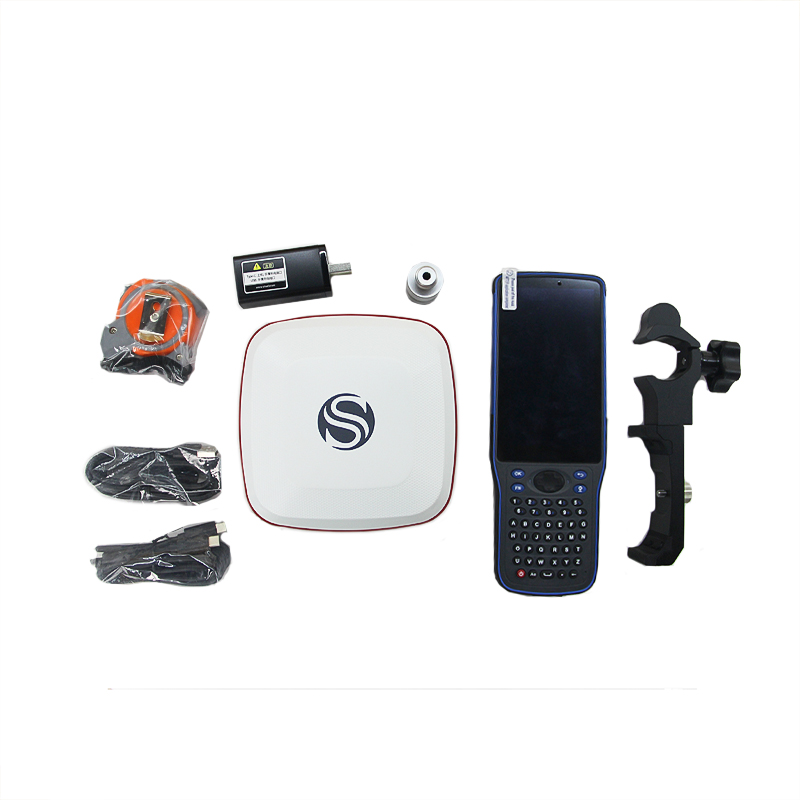

Handbook basic parameters model P9Ⅲ
operating system Android 9
processor Qualcomm octa-core 64-bit
RAM+ROM 2GB high-speed DDR3+16GB
external storage Maximum support 512GB SD expansion
sensor Electronic Compass, Electronic Bubble, Gravity Sensor
Camera 13 million autofocus camera
mobile network Mobile, Telecom, Unicom 4G full Netcom
WiFi/ 802.11b/g/n,4.1+ LE
Built-in battery 6000mAh, 3.8V, 22.8Wh
Protection class IP67
fall Withstands a 1.2-meter drop from a hard floor
operating temperature -30℃~+60℃
storage temperature -40℃~+80℃

International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying InstrumentsInternational Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying InstrumentsInternational Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying InstrumentsInternational Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying InstrumentsInternational Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying InstrumentsInternational Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments

Why Choose Us
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
Customer Photos
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
Certifications
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
Company Profile
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
Packing & Delivery
International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments
