International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments

Product Categories
Chengdu Jiebo Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments

Brand Name : STONEX

Model Number : S1U

Place of Origin : China

MOQ : 1 piece

Price : $2,800.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver STONEX S1U

Customized support : OEM

Channel : 1408 Channels

QZSS : L1C/A, L1C, L2C, L5,LEX

GLONASS : G1, G2,G3

Gps : L1C/A, L1C, L1P, L2C, L2P, L5

Galileo : E1, E5a, E5b, AltBOC, E6

BDS-2 : B1, B2, B3

Contact Now

International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments

Overview
Product Details
GNSS performance
Tracking characteristics
BDS-2: B1, B2, B3
BDS-3: B1C, B2a, B2b, ACEBOC
GPS: L1C/A, L1C, L1P, L2C, L2P, L5
GLONASS:G1,G2,G3
Galileo: E1, E5a, E5b, AltBOC, E6
QZSS: L1C/A, L1C, L2C, L5, LEX
data output
NMEA0183, NMEA2000, Crescent binary
Differential output
RTCM SC-104 (SBAS/Beacon) has its own differential format ROX, RTCM2. x, RTCM3. x, CMR, CMR+
Accuracy indicators
Static measurement
Horizontal: ± (2.5+0.5 × 10-6D) mm
Vertical: Soil (5+0.5 x 106D) mm
RTK measurement
Horizontal: Soil (8+1 × 106D) mm
Vertical: ± (15+1 × 106D) mm
Inertial measurement
Compensation accuracy
8mm+0.3mm/°tilt(30°within<2cm)
Compensation angle
0 ~ 70°
Inertial Navigation Update Rate
400Hz
system platform
operating system
Linux
Built in storage
Onboard 8G
Bluetooth
Bluetooth BT5.0 backward compatibility, BLE
WiFi
802.11 b/g/n
Electrical performance
battery
Built in intelligent lithium battery, 10500mAh, 3.6V
input voltage
9~ 28V DC
Physical indicators
size
152mm×92mm
weight
900g
human-computer interaction
Keys
Power button, used to turn on and off the host. Short press the button once to report the current working mode and status.
data interface
5-core interface
Used to connect external power sources and external radio stations
Type-C
Used for direct charging and data transmission
SIM card slot
Installing SIM card
Environmental performance
working temperature
- 30℃ ~ 70℃
Storage temperature
- 40℃ ~ 80℃
Waterproof and dustproof
IP67
Anti drop
2 meters falling from the pole (concrete hard ground)
humidity
Anti 99.9% condensation

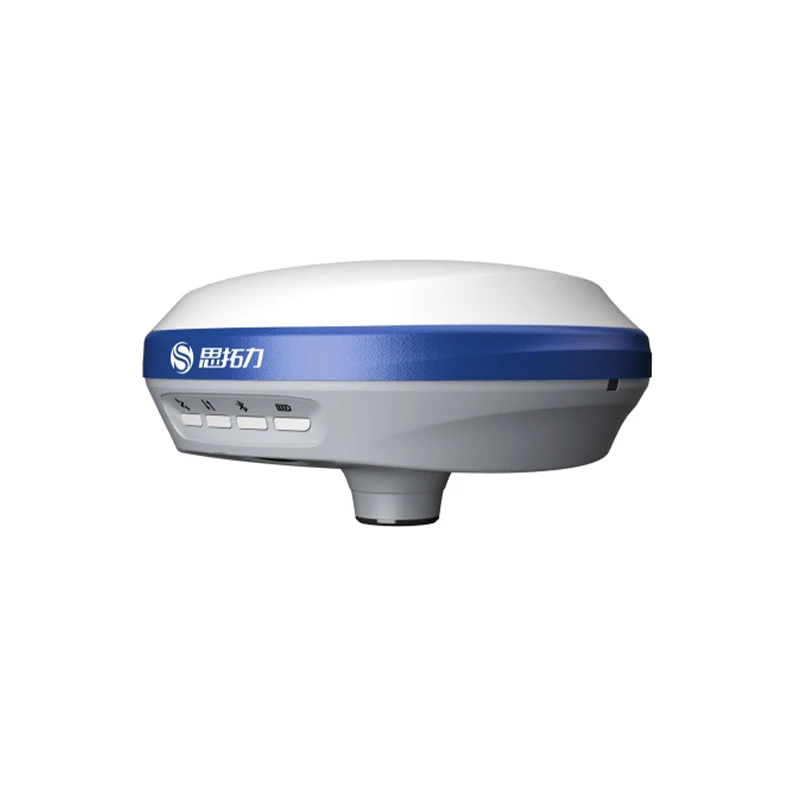

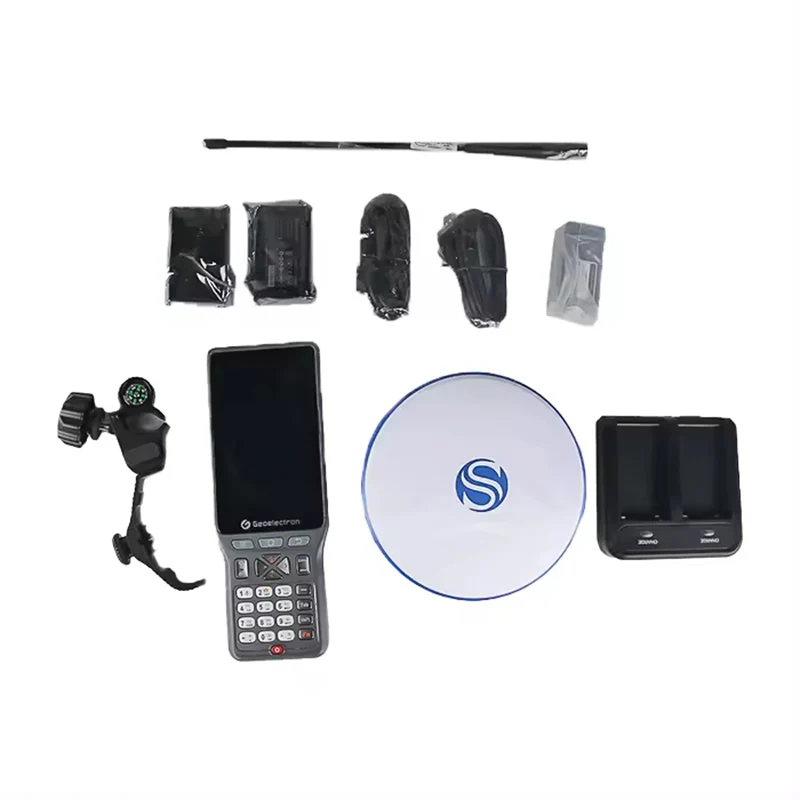

Product Display
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
Why Choose Us
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
Customer Photos
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
Certifications
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments
Company Profile
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
International Version STONEX S1U Gps Surveying Instruments GNSS RTK 1408 Channels Survey Instruments

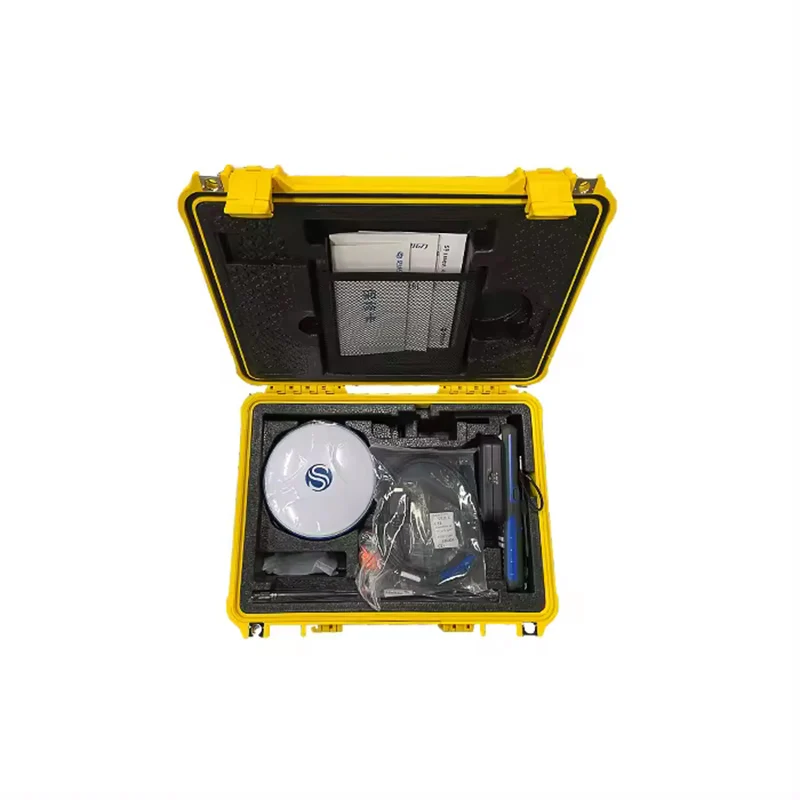

Packing & Delivery
