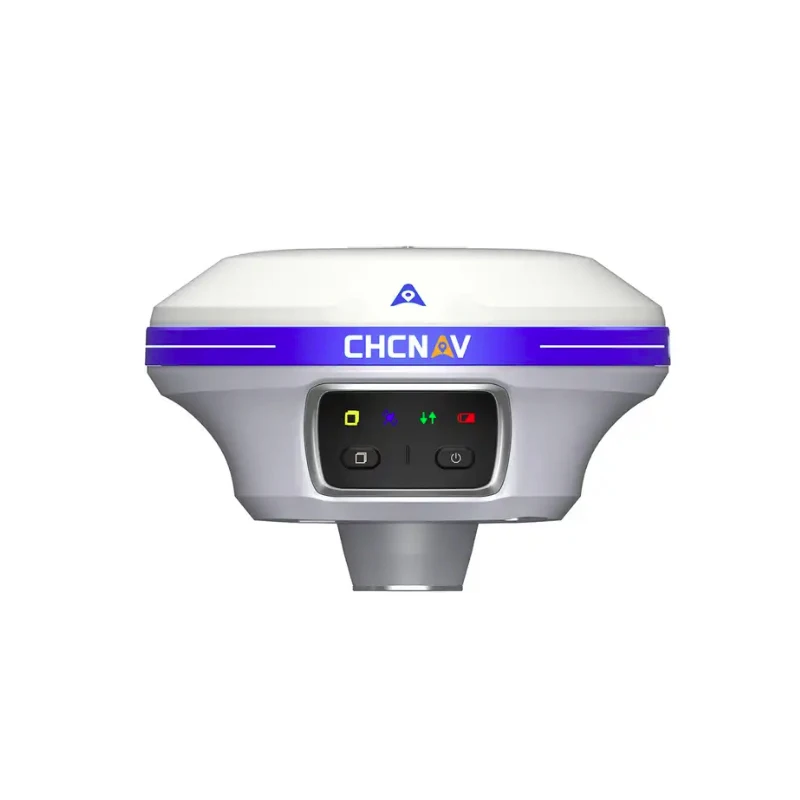

CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk

Brand Name : CHCNAV

Model Number : X11

Place of Origin : China

MOQ : 1 piece

Price : $1,600.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver

Frequency : 1408 channels

GPS : L1C/A,L1C,L2C,L2P,L5

Galileo : E1, E5A, E5B, E5AltBOC, E6

QZSS : L1C/A, L1C, L2C, L2E, L5

BDS : B1, B2, B3

Supports : WIFI

Internal battery life : 12hours

Application : full-wave

Contact Now

Technical Parameters
project
content
index
Satellites and Accuracy
satellite system
GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star twenty-one frequency
number of channels
1408
Initialize reliability
99.90%
No network continued test
Support high-precision solution, the base station can publish data such as power information
Signal capture sensitivity
Typical value -162dbm, stronger ability to capture weak signal
satellite-based differential
Support L-Band function:
(optional)
Support Beidou third-generation B2b-ppp service, the accuracy can reach centimeter level
Support domestic satellite-based enhanced services (centimeter level)
Support ground-based augmentation system differential services (centimeter level)
Global satellite-based centimeter-level services can be opened
GNSS+Inertial Navigation[2]
IMU update rate
200Hz
slope
0-60 degrees
super inertial navigation
Support travel process to complete initialization, and support centering rod calibration
User interaction
indicator light
1 satellite light + 1 differential data light + 1 static indicator light + 1 power light
button
Static toggle key + power/confirm key
web page
Support PC/mobile web pages
Camera
Function
Support visual stakeout
pixel
2MP
frame rate
25Hz
Field of View (H, V)
75°, 75°
Illumination
Starlight-level camera, still maintains full-color picture under 0.01lux illumination
physical properties
size
Φ133mm*87.6mm
weight
0.8 Kg (including battery)
material
magnesium alloy
Operating temperature
-45℃~+75℃
storage temperature
-55℃~+85℃
waterproof breathable membrane
Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain
Waterproof and dustproof
IP68 (Protection against 1 meter immersion in water for 30 minutes)
anti-collision
IK08 (with the same mechanical impact force as a 2.5kg steel ram without damage, 3 meters drop resistance)
Electrical properties
Battery
Built-in 6600mAh lithium battery
The typical battery life of the mobile station is more than 16h
fast charge
Support fast charge, up to 24w fast charge
Built-in storage
8GB, can support external expansion 128G, automatic cycle storage, disk
After the storage is full, it will be automatically deleted, and the static data of the receiver will be copied with one key.
data output
Differential data
RTCM2.X, RTCM3.X, CMR, CHC516
positioning data
NMEA-0183
static data
HCN, RINEX 2.11, RINEX3.02
data communication
wireless connection
Support Wi-Fi data link
network module
Handbook supports 4G full Netcom
radio
Built-in single-receiver radio, support CTI/TT450/transparent transmission protocol
Advanced Features
One-click fix
Comes with a CORS account, which can be fixed at startup
Smart service
Support CTI cloud service, provide cloud storage, function code sharing
control handbook
model
HCE600 Android Measurement Handbook
operating system
Android 10
CPU
Octa-core 2.0GHz processor
network
4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
Operating temperature
-30℃-+60℃
Storage temperature
-40℃-+80℃
Waterproof and dustproof
IP68
Product features
CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk
*STONEX GNSS receiver is a multiple-frequency receiver and designed for GNSS surveying applications. It is available as a base
station, or as a standalone rover,which can be switched freely whenever and wherever, offering maximum versatility in the system
configuration to meet your specific requirements. At the same time, receiver can upgrade easily to continually meet your new
demand.

*The internal antenna supports the all satellite system signals like Beidou, GPS, GLONASS, Galileo, QZSS, IRNSS. The users no
longer have to worry about upgrading RTK hardware to support other satellite systems.

*The internal use of the latest Sensor Fusion system allows the field to take the tilt measurement without calibration, and the
field surveying is more convenient.
CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk
CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk

Certifications

CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk
CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk
Company Profile
CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk
Packing & Delivery
CNC X11 Land Surveying Cheap Price Gps Gnss Receiver Survey Instrument 1408 Channel Gnss Rtk
