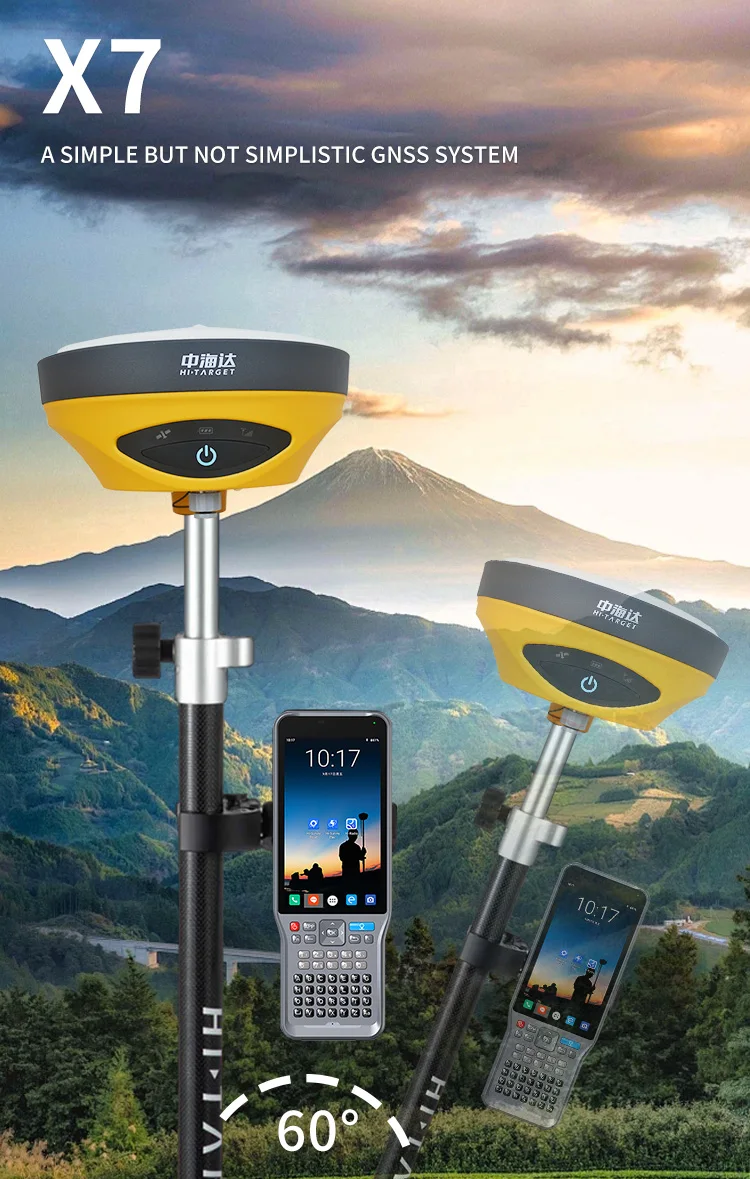

| | System kernel | Using multi-star system core |
| Number of channels | 1408 |
| BDS | B1I,B2I,B3I,B1C,B2A,B2b-ppp |
| GPS | L1C/A,L2P,L1C,L2C,L5 |
| GLONASS | G1X,G1P,G2P,G3 |
| GALILEO | E1,E5a,E5b,E5AltBoc,E6c |
| SBAS | yes |
| Output format | ASCII: NMEA-0183, binary code |
| Positioning output frequency | 1Hz~20Hz |
| Differential support | CMR,RTCM2.X,RTCM3.0,RTCM3.2 |
| Static format support | GNS, Rinex dual format static data |
|
RTK positioning accuracy
| Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm
(D is the distance between the measured points) |
|
Static positioning accuracy
| Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points)
Elevation: ±(5+0.5×10¯6D) mm
(D is the distance between the measured points) |
| DGPS positioning accuracy | Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm |
| SBAS positioning accuracy | 0.5m |
| Initialization time | <10 seconds |
| Initialization reliability | ＞99.99% |
|
Built-in communication
| network | Built-in 4G full Netcom network communication |
| WiFi | 802.11b/g access point and client mode, can provide WiFi hotspot service |
| Bluetooth | Built-in Bluetooth |
| Built-in transceiver |
| Power | 1W/2W/5W adjustable |
| frequency band: | 403MHz-473MHz |
| Transmission rate | 19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable |
|
External radio
| Power | 5W/10W/20W/30W adjustable |
| frequency band: | 403MHz~473MHz |
| Transmission rate | 19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable |
|
User Interface
| panel | Single button |
| Indicator light | Satellite lights, signal lights, power lights |
| Display screen | Industrial-grade OLED HD color display, capacitive touch screen |
|
Advanced application
| iPOWER smart balance technology, LBS, NFC |
| Smart service | Voice broadcast, voice guidance, function self-check, DIY voice |
| Remote Service | Remote upgrade, remote registration, remote data download |
|
Electrical physical properties
|
battery
| High capacity lithium battery 6800mAh/piece (Standard 2 pieces) with power display light, removable Single battery network mobile
station continuously working formore than 10 hours |
| Input voltage | DC 6~28VDC, with over-discharge protection |
| size | Φ158mm×98mm |
| weight | ≤1.2kg (including battery) |
| Power consumption | 3W |
| material | Shell is made of magnesium alloy material |
|
Environmental characteristics
| Dust and water release | P68, can resist temporary immersion under 2 meters water, completely prevent dust from entering |
| Anti-fall | Resistance to natural drop of 3 meters |
| Operating temperature | -45℃~75℃ |

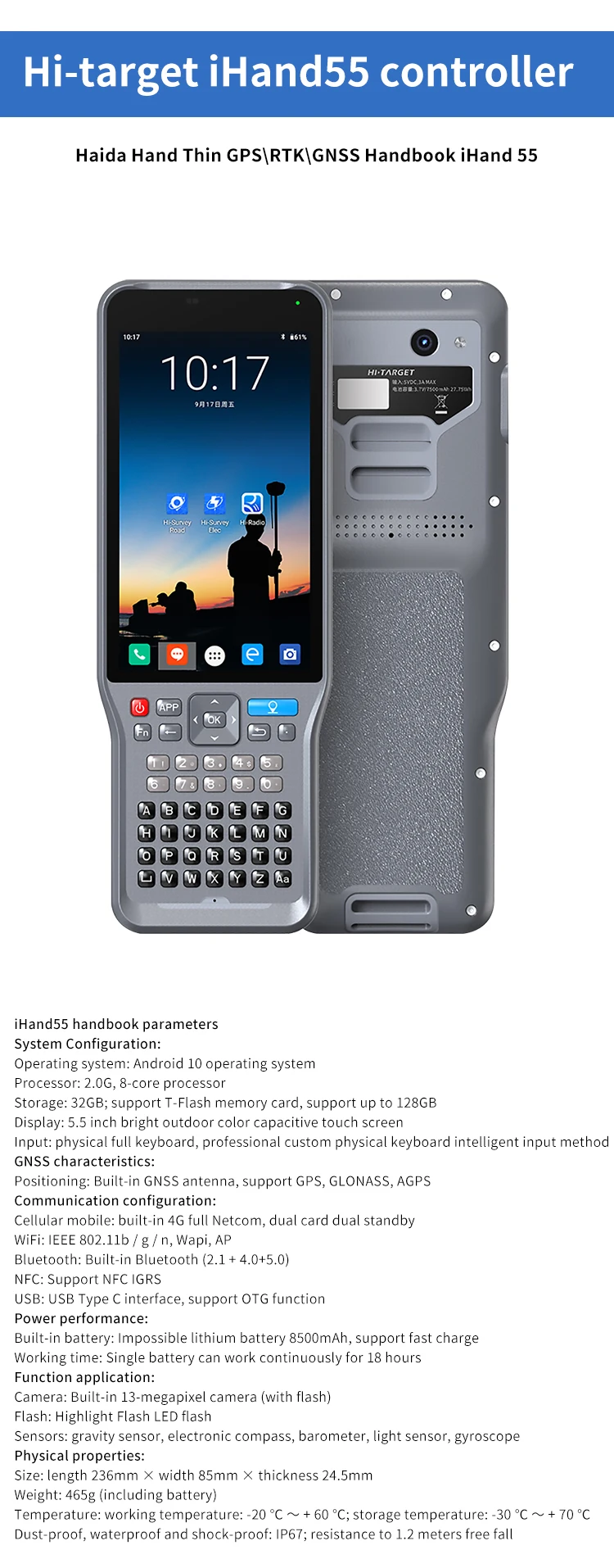

| Operating hand thin | | |
| | model | iand 5.5 |
| operating system | Android 10 operating system |
| processor | 1.5G, quad-core processor |
| storage | 2GB RAM+16GB ROM; support T-Flash memory card, support up to 128GB |
| display | 5.5 inch color capacitive touch screen |
| enter | Physical full keyboard |
|
Communication configuration
| Cellular mobile | Built-in 4G full Netcom, dual card dual standby |
| WiFi | 802.11a/b/g/n access point and client mode, can provide WiFi hotspot service |
| Bluetooth | Built-in Bluetooth |
| NFC | Support NFC IGRS |
| USB | USB Type C interface,Support OTG function |
| Power performance | Built-in battery | Removable lithium battery 3.7V/5200mAh, supports fast charging (charging time is less than 3 hours) |
| Working time | A single battery can work continuously for 15 hours |
| | size | 208mm×83mm×24mm |
| Weight | 0.44g (battery) |
| Operating temperature | 20℃C-+55℃ |
